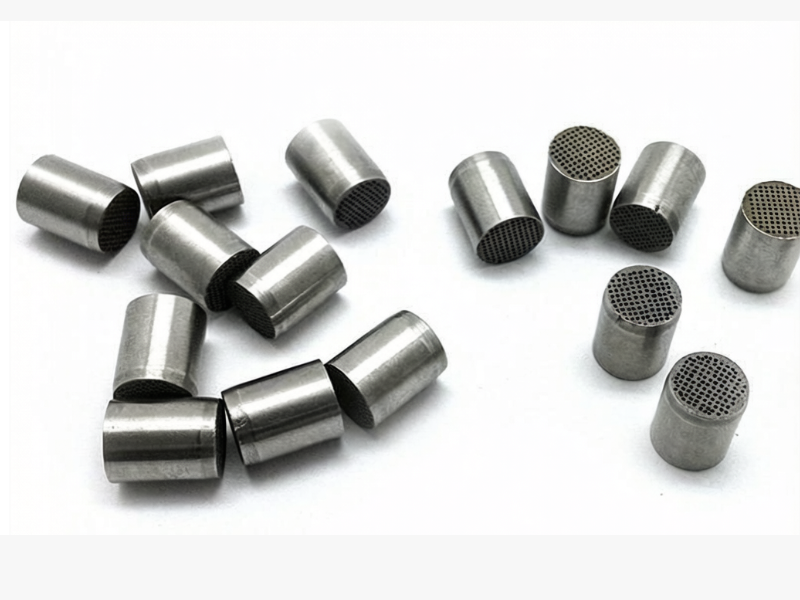

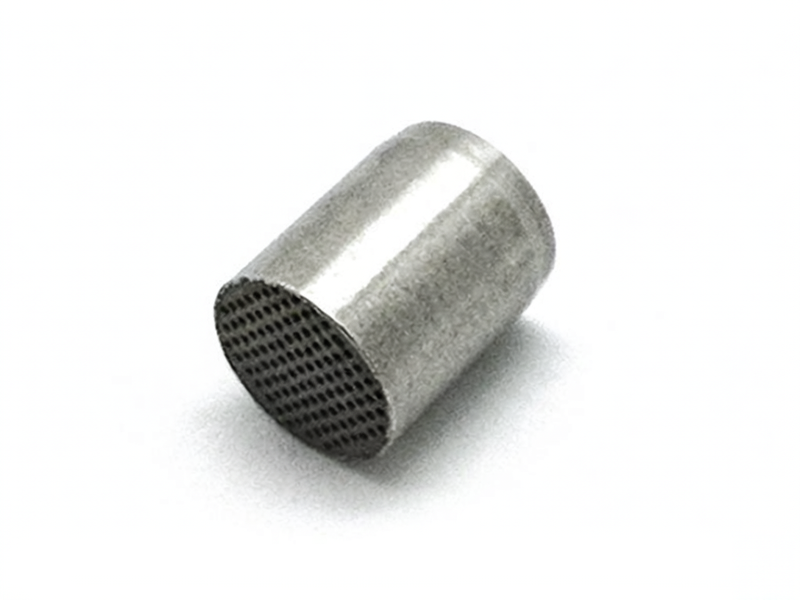

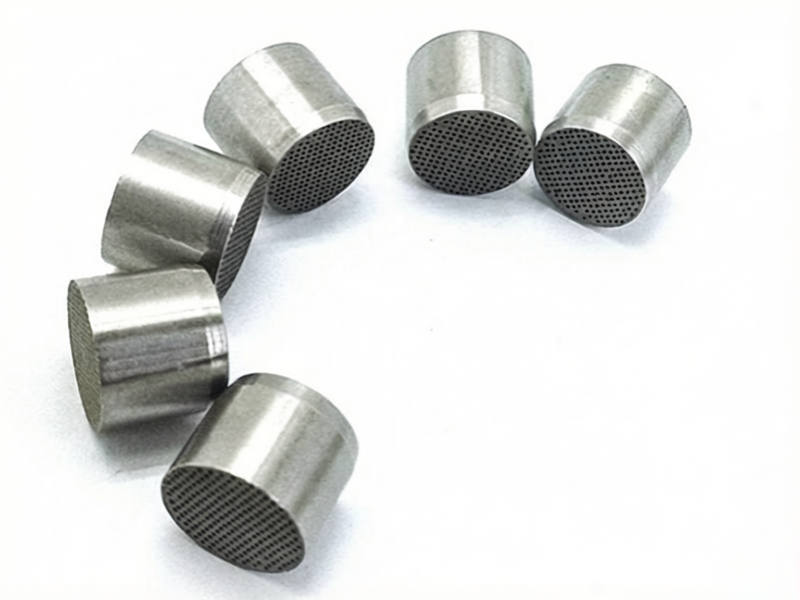

Mold Sintered Vents

  • Mold Sintered Vents
  • Mold Sintered Vents
  • Mold Sintered Vents

Products description
The mold sintered vents are used to vent air and other impurities during mold casting in order to improve the mold quality. It is widely used in mold castings of different types, including injection molds, gravity-casting molds and vacuum pressing and casting molds as well as low pressure casting molds.

Parameters
Materials Stainless steel(SUS304,SUS316), customizable
Outer Diameter 4-30mm
Length 10mm
Diameter of the hole 0.1-0.5mm
Features
  • This vent type features a high resistance to thermal impacts and features a long service life.
  • With a superior corrosion resistance, it is easy to clean and replace.
  • The ventilation effect is better due to an increase of 10-20% more pores when compared to a common air release plug.
  • The damage to machined components is reduced due to the use of stainless steel material with a high hardness.
  • The outside diameter of our products has a wide range of 4mm-30mm, though we can customize this to any specification needed.
  • The gas venting resistance is significantly reduced due to the smooth vent pores made of stainless steel. The air permeability is 5-10 times that of a common air release plug.
Types parameters
Type Outside Diameter/mm Height/mm Pore Diameter/mm Pore Number
BOS03105 3.04 10 0.5 9
BOS04105 4.04 10 0.5 16
BOS05105 5.04 10 0.5 24
BOS06105 6.04 10 0.5 37
BOS08105 8.04 10 0.5 69
BOS10105 10.04 10 0.5 121
BOS12105 12.04 10 0.5 177
BOS14105 14.04 10 0.5 241
BOS16105 16.04 10/15 0.5 293
BOS18105 18.04 10 0.5 301
BOS20105/20155 20.04 10/15 0.5 349
Type Outside Diameter/mm Height/mm Pore Diameter/mm Pore Number
BOS04103 4.04 10 0.3 24
BOS05103 5.04 10 0.3 37
BOS06103 6.04 10 0.3 52
BOS08103 8.04 10 0.3 109
BOS10103 10.04 10 0.3 148
BOS12103 12.04 10 0.3 221
BOS14103/14153 14.04 10 0.3 261
BOS16103/16153 16.04 10/15 0.3 333
BOS18103 18.04 10 0.3 385
BOS20103 20.04 10 0.3 481
Type Outside Diameter/mm Height/mm Pole Diameter/mm Pore Number
BOS03102 3.04 10 0.2 21
BOS04102 4.04 10 0.2 37
BOS05102 5.04 10 0.2 61
BOS06102 6.04 10 0.2 89
BOS08102 8.04 10 0.2 157
BOS10102 10.04 10 0.2 177
BOS12102 12.04 10 0.2 261
YJ16102 16.04 10 0.2 423
